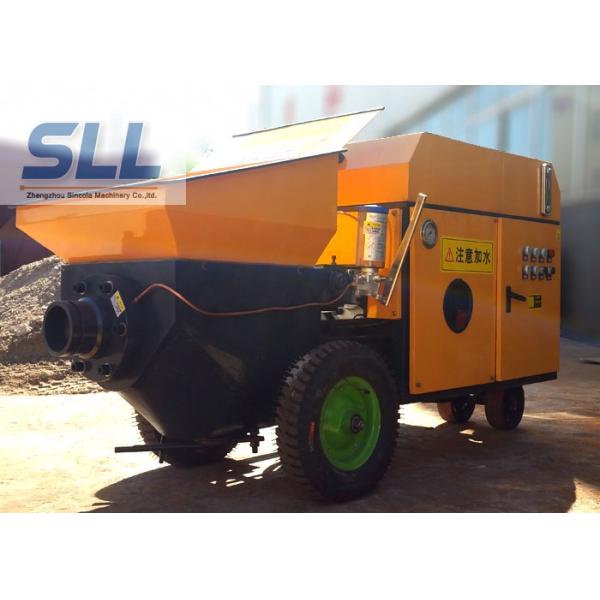

Portable Mini Secondary Construction Column Small Concrete Pump for Small Project Pouring Grouting

SHR8 secondary construction column mini concrete pump is a concrete & grout pump designed for masonry grouting and shotcrete applications. It features up to 7.5 yards per hour production output. This product is a new, multi-purpose, multi-purpose industrial pump developed by absorbing advanced technology from abroad. Typical applications include: masonry block filling, wall grouting, hoisting mortar for masonry wall construction; concrete sidewalk and patio slab pumping; low-volume shotcrete.

Technical Parameters of Secondary Construction Column Small Concrete Pump:

Advantage of the secondary construction column pump is as follows:
(1). The use of pump power is very small, only 7.5kw, in the case of no power supply with only a minimum of the generator can work.
(2). The smallest concrete pump in domestic, the only choice for many narrow construction environment.
(3). Pump light weight, easy to move.
(4). Pump configuration high, full hydraulic operation, stable performance, compact structure, low failure rate, long life.
(5). Pump affordable, micro-mortar pump, micro-fine stone concrete pump, micro-concrete pump three configurations for customers to choose.
(6). The use of piston structure automatic air pressure technology, working pressure, pumping distance, high pumping height.





Features of secondary construction column small concrete pump:
1. Power system, hydraulic system and pumping system match a reasonable, effective play the motor power.
2. High suction efficiency, the actual pumping efficiency reached the theoretical value of 80% or more
3. Optimized configuration, the use of imported hydraulic parts and electrical components, greatly improving the reliability of the use of equipment
4. Unique distribution of oil buffer technology to ensure that S tube swing in place to extend the life of the S tube
5. High and low voltage switching applications, simplifying the operation mode
6. Lubrication system using forced filtration, pre-pressure double pump energy saving automatic centralized fuel supply system, full oil supply, lubrication better, and save consumption, lower than the average continuous oil consumption by more than 50%
7. New wear-resistant materials and welding process applications, the use of commonly used wearing parts of the service life doubled
8. Power system selection of international brand hydraulic main pump, motor selection of well-known domestic brands, to provide a strong driving force

Application of mini concrete pump:

• Concrete/bridge repair
• Machine base stabilization
• Masonry block fill
• Mining
• Piling encasements
• Pressure grouting
• Refractory
• Shotcrete
• Soil stabilization
• Void fill

FAQ:

1. Are you a factory or trading company?
A: We are a manufacturer with export license, you could get factory price from us.

2. Can you do OEM?
A: Yes, we can do OEM products. It's no problem.

3. Payment
30% prepayment by TT on signing the contract and 70% balance should be paid by TT before shipment.
4. Delivery time
Within 5-7 days for the standard pump after receipt of the prepayment.

5. Delivery terms:
FOB/CIF/CFR/EXW

6. Quality and service
The concrete pump is manufactured according to national standard GB/T13333-91, which can be used for your check

7. Guarantee time
12 months after machine leaves factory.




Any question, welcome to contact us.
Hope get your feedback, and establish a long cooperation with you.
